Produktfoto des Vakuumhebegeräts Aero-Window von der Firma Aero-Lift

Aero-Window

GLASS

Excellent suction properties for handling smooth transport goods such as glass and windows.

  • Glass
  • Rotating
  • Vertical pick
  • Up to 2.000 kg < 500 kg

Strengths of the Aero-Window

Center of gravity compensation for different transport good weights due to the 3-hole suspension eye

All of the suction plates can be switched on and off in a matter of seconds via manual slide valves and/or quick-change couplings

No downtime because of the integrated motor protection switch, which protects the vacuum generator from winding damage.

Quick and easy maintenance: The intelligent suction plate concept enables worn suction seals to be replaced in seconds with no tools.

Rotation of the workpiece in the vertical direction by +/- 90° and fixing every 90° by means of a Bowden cable

Maximum compactness and optimised weight of the device because the vacuum accumulator is integrated in the frame

Excellent suction properties and increased friction coefficient in the vertical position thanks to the special AERO-LIFT glass suction plates with a low intrinsic volume and a special structure

Quick and tool-free conversion guaranteed thanks to plug-in connections that enable configuration with fewer or more suction plates. In addition, two of the four crossbars can be removed and adapted to different load sizes.

Can handle smooth transport goods, such as glass and windows

Dimensional drawing

Technische Zeichnung des Vakuumhebegeräts Aero-Window von Aero-Lift

Product variants

The AERO-WINDOW vacuum lifter is available in different versions with:

  • load capacities from 300 to 500 kg
  • different suction plate diameters, etc.

We would be happy to advise you on selecting the right device for your application.

Application images

    Das Vakuumhebegerät Aero-Variowin von Aero-Lift hebt eine Glasplatte
    Nahaufnahme eines Saugers des Vakuumhebegeräts Aero-Window von Aero-Lift
    Anwendungsfoto des Aero-Window, einem Vakuumhebegerät der Firma Aro-Lift
    Nahaufnahme eines Vakuumhebegeräts der Firma Aero-Lift, wie es Glas hebt

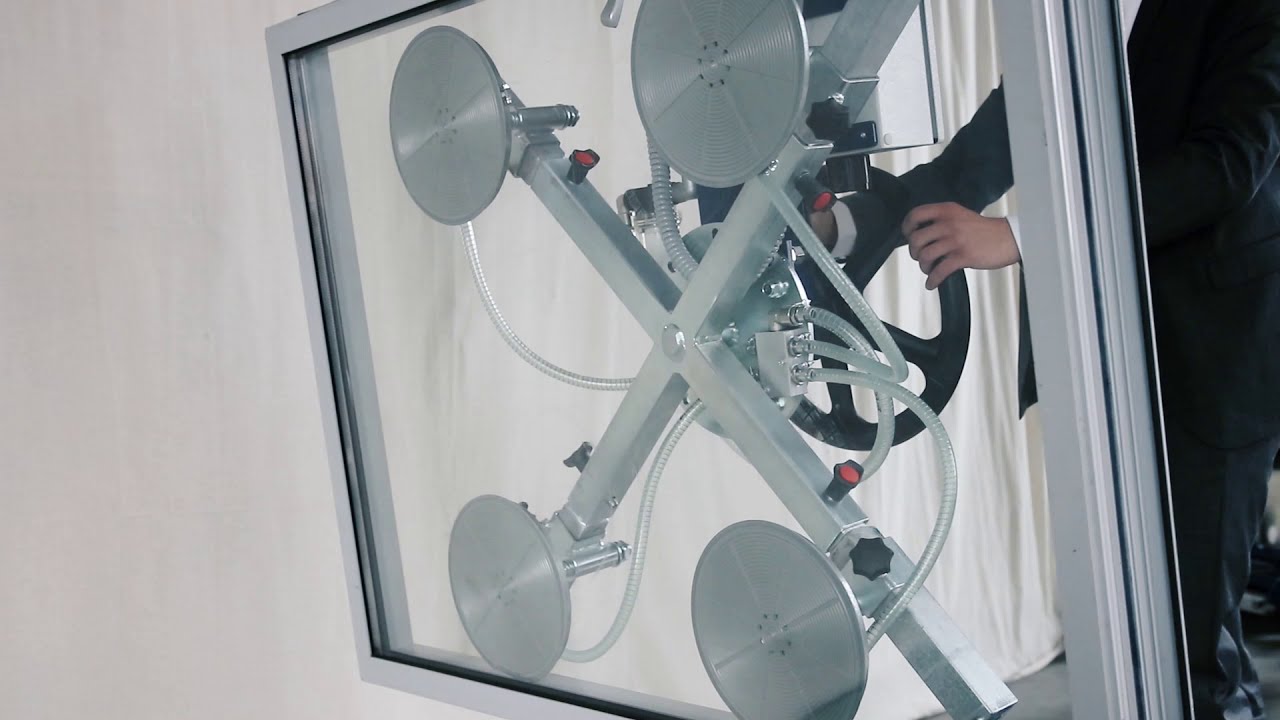

Product video

Optional configuration / accessories

Chain hoist­ connection

As an option, the vacuum lifting device can be configured with a spiral cable and a Harting plug instead of a CEE plug. This enables the vacuum lifter to be powered directly at the chain hoist and prevents cables from getting in the way in the work area.

Article code suffix: -CH
