Aero-Timber

WOOD

Ideal for transporting long material (wooden beams / planks) thanks to flexible handle positions, process accuracy and short changeover times.

  • Timbers
  • Horizontal pick
  • Up to 2.000 kg < 600 kg

Strengths of the Aero-Timber

Can handle long material up to 13 m in length, e.g. for glulam, solid structural timber and rough-sawn beams

Guaranteed work and operator safety because of the generously dimensioned vacuum reservoir with an intelligent warning device

Optimally adapted to the working environment thanks to the selectable handle position (transversely and at the front)

High process accuracy when placing the vacuum lifter on the transport goods thanks to the positioning aids on all suction plates

Can handle beams with a width of 8 cm or more due to a specially designed suction plate concept with three vacuum chambers

Unrivalled versatility of the modular basic system with an integrated water separator, which can be individually expanded with additional options

Quick and easy maintenance: The intelligent suction plate concept enables worn suction seals to be replaced in seconds without tools.

Maximum process reliability thanks to the robust welded steel construction of the frame and crossbars

Dimensional drawing

Technische Zeichnung des Vakuumhebegeräts Aero-Timber der Firma Aero-Lift

Product variants

The AERO-TIMBER vacuum lifter is available in different versions with:

  • load capacities from 300 to 600 kg
  • 2 to 4 suction plates
  • different traverse and handle lengths, etc.

We will be happy to advise you on the selection of the right device for your application.

Application images

    Das Vakuumhebegerät Aero-Timber von Aero-Lift hebt einen Holzbalken
    Nahaufnahme des Vakuumhebegeräts Aero-Timber von der Firma Aero-Lift
    Anwendungsfoto des Vakuumhebegeräts Aero-Timber von Aero-Lift, wie es einen Balken hebt

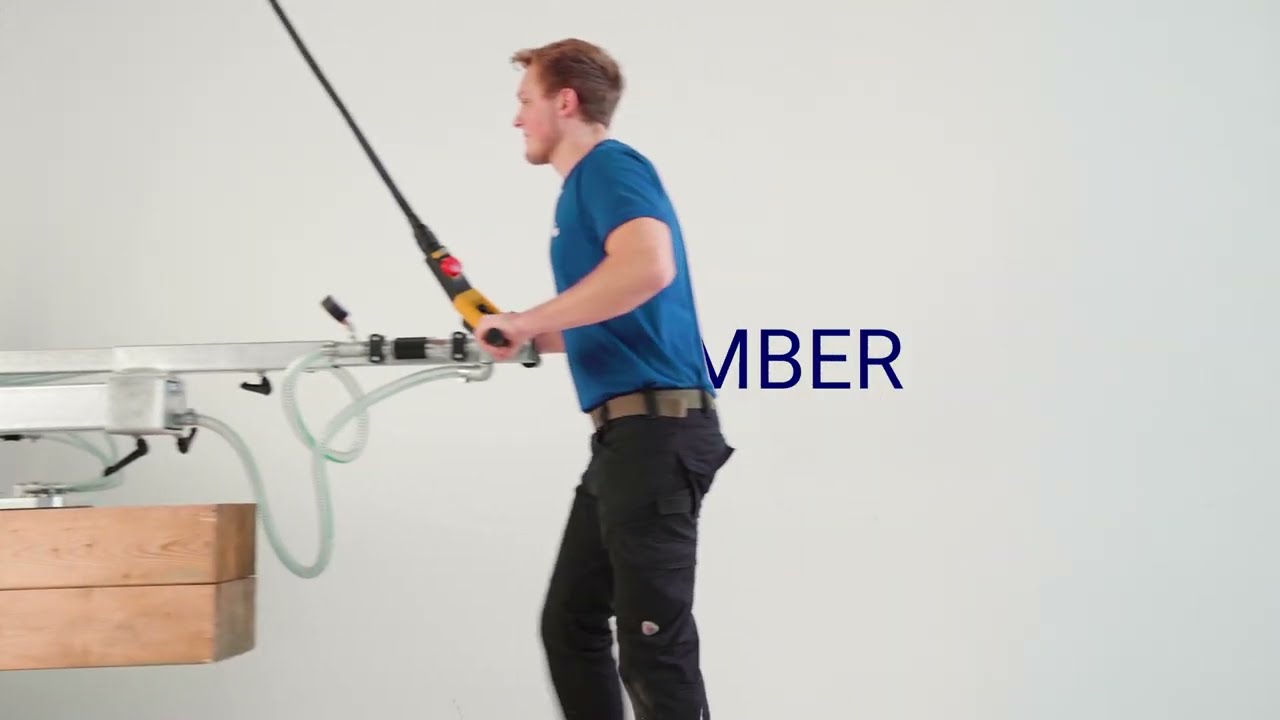

Product video

Optional configuration / accessories

Park & Move

Support feet mounted directly on the appliance. The height can be varied via a locking pin. Castors are also provided for transporting the system.

Article code suffix: -PR

Chain hoist­ connection

As an option, the vacuum lifting device can be configured with a spiral cable and a Harting plug instead of a CEE plug. This enables the vacuum lifter to be powered directly at the chain hoist and prevents cables from getting in the way in the work area.

Article code suffix: -CH

Cable drum 5 m

Optional cable drum (5 m) for indoor use

Cable drum 10 m

Optional cable drum (10 m) for indoor use

Holder bag for ­crane control bulb

Adaptation option for the crane control bulb on the device
